82401646
Manufacturer:
Wurth Electronics
Mfr.Part #:
82401646
Datasheet:
Description:

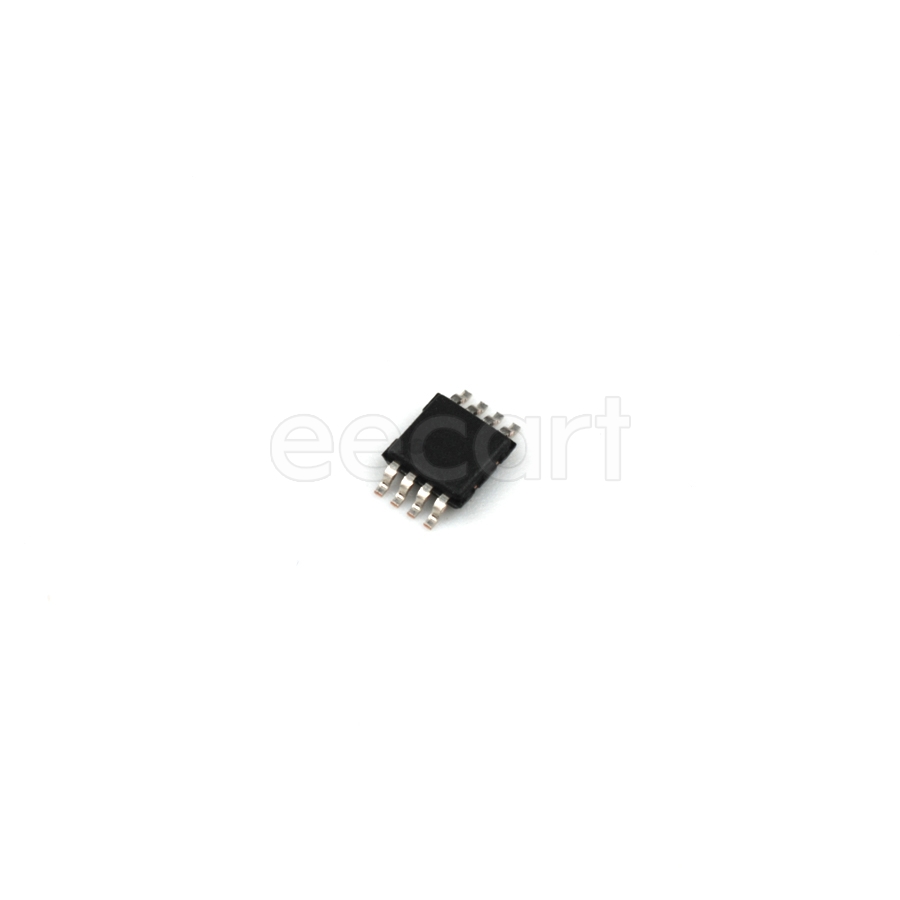

TVS Diodes MSOP-8 SMD/SMT Working Voltage:5 V Breakdown Voltage:6 V Clamping Voltage:13 V Polarity:Bidirectional, Unidirectional
| Parameter | Value |
|---|---|
| Capacitance | 400 fF |
| Length | 3 mm |
| Width | 3 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 8 |
| Height | 875 µm |
| Packaging | Reel |
| RoHS | Compliant |
| Polarity | Bidirectional, Unidirectional |
| REACH SVHC | No SVHC |
| Working Voltage | 5 V |
| Operating Supply Voltage | 5 V |
| Number of Channels | 6 |
| Breakdown Voltage | 6 V |
| Max Reverse Leakage Current | 2.5 A |
| Direction(Counting Sequence) | Unidirectional |
| Min Breakdown Voltage | 6 V |
| Reverse Standoff Voltage | 5 V |
| Clamping Voltage | 13 V |
| ESD Protection | Yes |
| Test Current | 1 mA |
| Max Breakdown Voltage | 6 V |
| Diode Capacitance | 0.4 pF |
Stock: 12606
Distributors
pcbx
pcbxUnit Price$0.79509
Ext.Price$0.79509
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.79509 | $0.79509 |
| 10 | $0.78824 | $7.88240 |
| 25 | $0.77574 | $19.39350 |
| 50 | $0.76345 | $38.17250 |
| 100 | $0.72583 | $72.58300 |
| 300 | $0.70060 | $210.18000 |
| 500 | $0.67625 | $338.12500 |
| 1000 | $0.63798 | $637.98000 |
| 3000 | $0.60187 | $1805.61000 |
